PROOFING MACHINE FOR
GRAVURE PRINTING CYLINDER

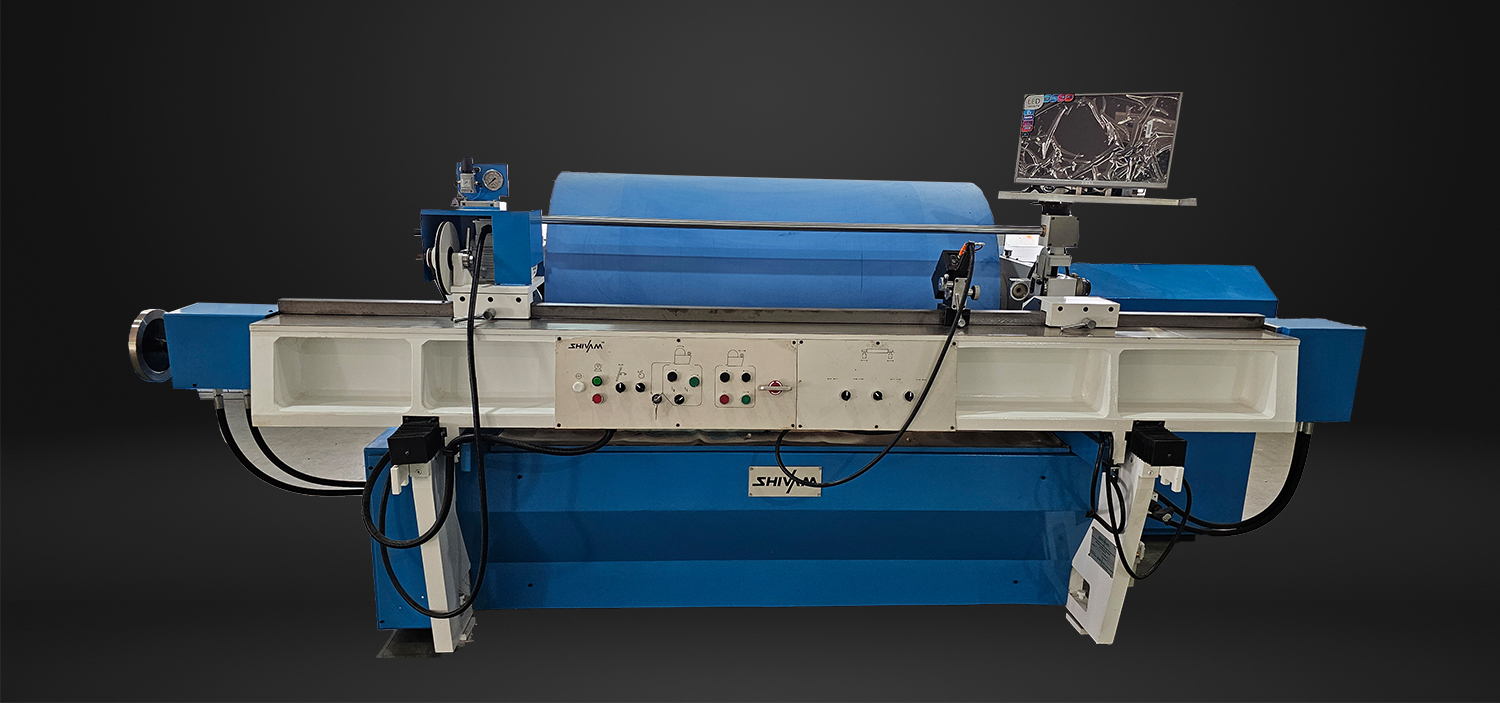

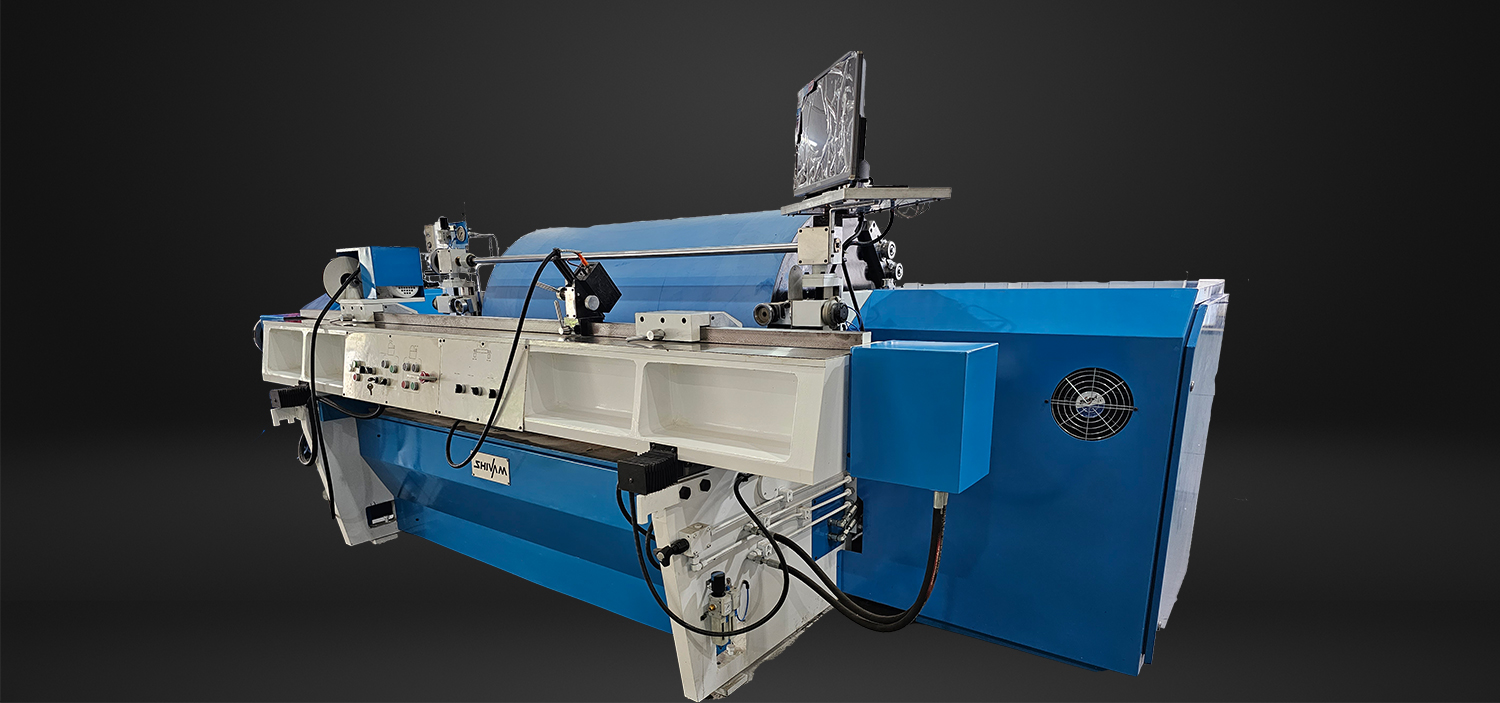

The Proofing Machine is developed for specific need of the Roto-Gravure industries. This machine is useful to inspect the precisely quality of the electronically engraved or chemically etched cylinders. The sample proofs are produced quickly and the proof establishes the perfect colours and ink standards to allow total elimination of production press downtime caused by cylinder problems.

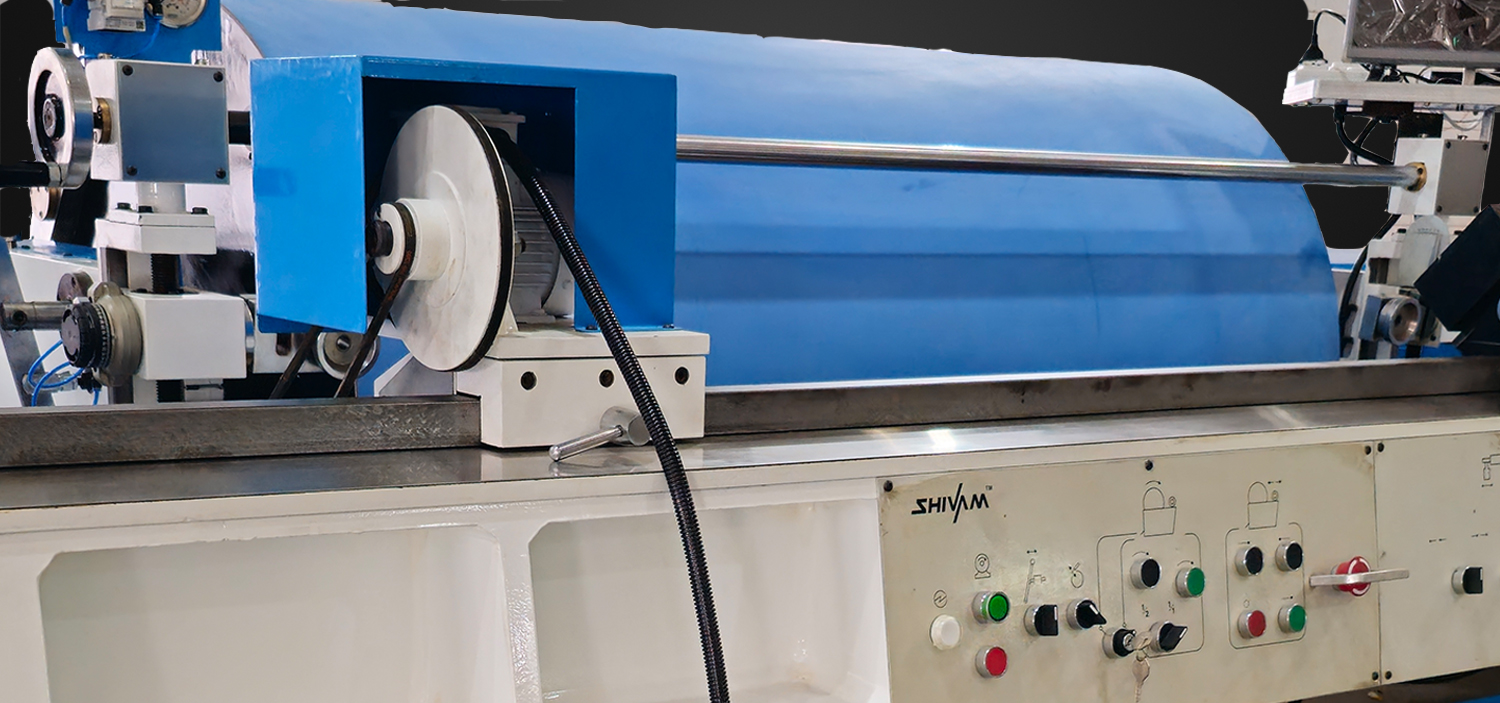

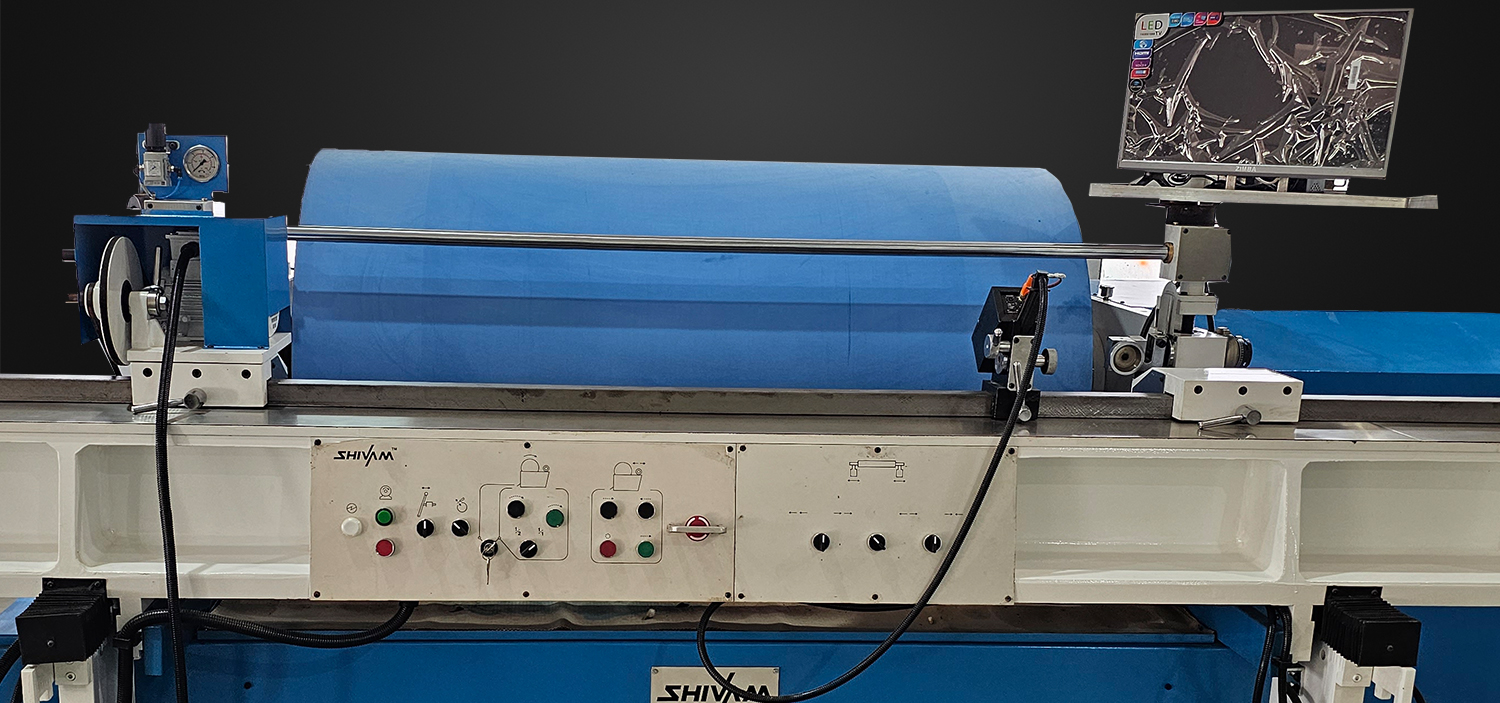

The machine is equipped with programmable logic controller (PLC), hydraulic controls and pneumatic controls systems, which take control of rotation and pressure adjustment of impression cylinder, and adjustment of cylinder support. The proofs length can be selected by rotating the drum in half or full rotation mode. The machine is equipped with doctor blade setting, pressure adjustment of pneumatic and hydraulic control and impression cylinder registration, a high magnification video registration with video monitor, fine tuning of cylinder position to produce precise proofs.

DISTINCTIVE
FEATURES

• Precise register control
• Programmable logic control (PLC)
• Pneumatic control for doctor blade in and out
• Hydraulic control with high pressure system
• Fully safety interlocking system to avoid accident
• High precise registration camera & led monitor screen

STANDARD ACCESSORIES

• Hydraulic systems with power peck
• Pneumatics systems
• A high magnification video registration system with video camera and video led monitor
• One doctor blade with support blade
• Two centres for head stocks to cylinder mounting
• One rubber blanket

SPECIAL (OPTIONAL)
ACCESSORIES

• Cylinder wash off system
• Doctor blade support units
• Standard Head stock centres
• Special Head stock centres

MACHINE SPECIFICATION
